LK-1201B

Inquiry

Product ID: LK-1201B

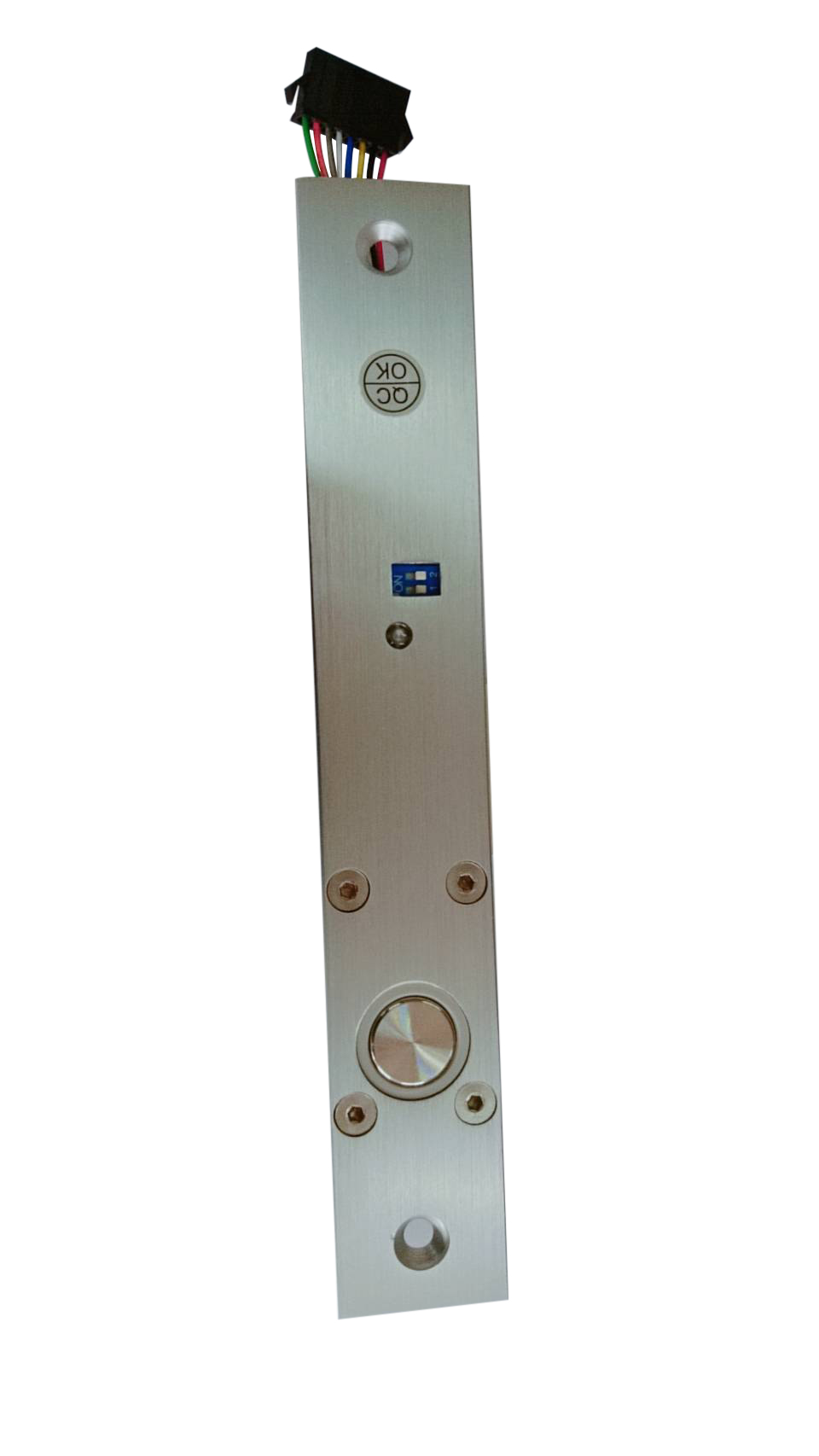

  • Name type :LK-1201B Bolt Lock
  • Input voltage :12VDC
  • Standby current :320mA
  • Start current :900mA
  • Body:205L×32W×43H(mm)
  • Strike plate :104L×32(25)W×35H(mm)
  • Delay time :0sec、3secs、6secs、9secs。
Assembly
PDF

Function:

But the external connection opens the door the button,locks the heart detection,the gate position detection (Relay NO/NC; Relay may the external connection buzzer), the LED directive function (if in 5 seconds not open the door movement,will cage automatically),top quality coil isolation for high voltage protection).

Accessories:

LK-1201AU (long)

Material: Stainless steel
Door Thickness: 8~13mm.
Must match the LK-1201AV use.
(Selects and purchases accroding to the service condition.)

LK-1201AU (short)

Material: Stainless steel
Door Thickness: 8~13mm.
Must match the LK-1201AV use.
(Selects and purchases accroding to the service condition.)

LK-1201AV (long)

Material: Aluminum
Must match the LK-1201AU/LK-1201A/B/AE use.
(Selects and purchases accroding to the service condition.)

LK-1201AV (short)

Material: Aluminum
Must match the LK-1201AU/LK-1201A/B/AE use.
(Selects and purchases accroding to the service condition.)
