GL-600 / GL-601

Inquiry

Product ID: GL-600 (1300LBS)

  • Name type :GL-600/GL-601
  • Holding force(Max) :1300LBS(589KG)
  • Voltage:12VDC~24VDC
  • Current:12VDC-500mA, 24VDC-250mA
  • Body:203L×63W×42H(mm)
  • Strike plate :185L×61W×16H(mm)
  • Material:Stainless steel
  • Used for :In swing door
Assembly
PDF

Function:

  GL-600 GL-601
Door monitoring output YES NO

Accessories:

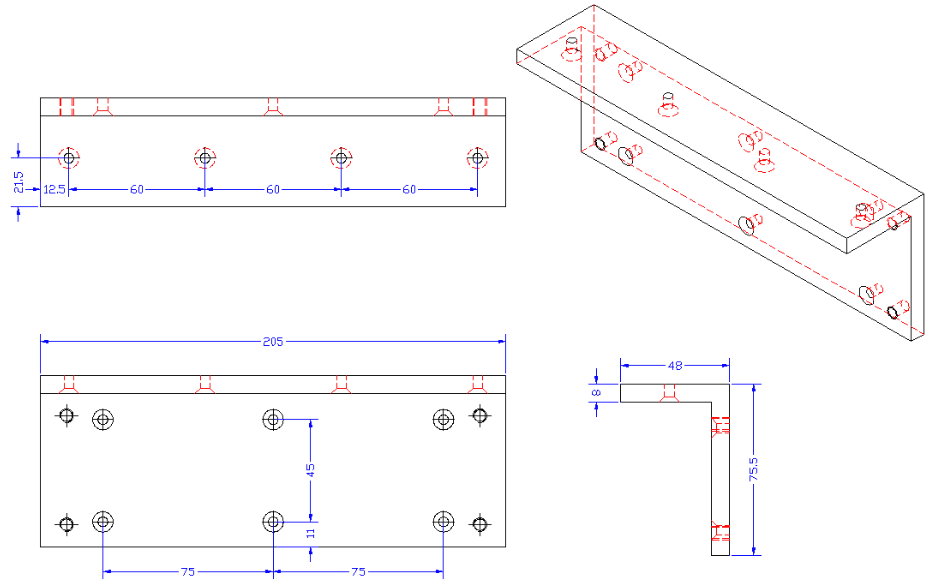

GL-600 L-Bracket

Material: Aluminum
(Selects and purchases accroding to the service condition.)

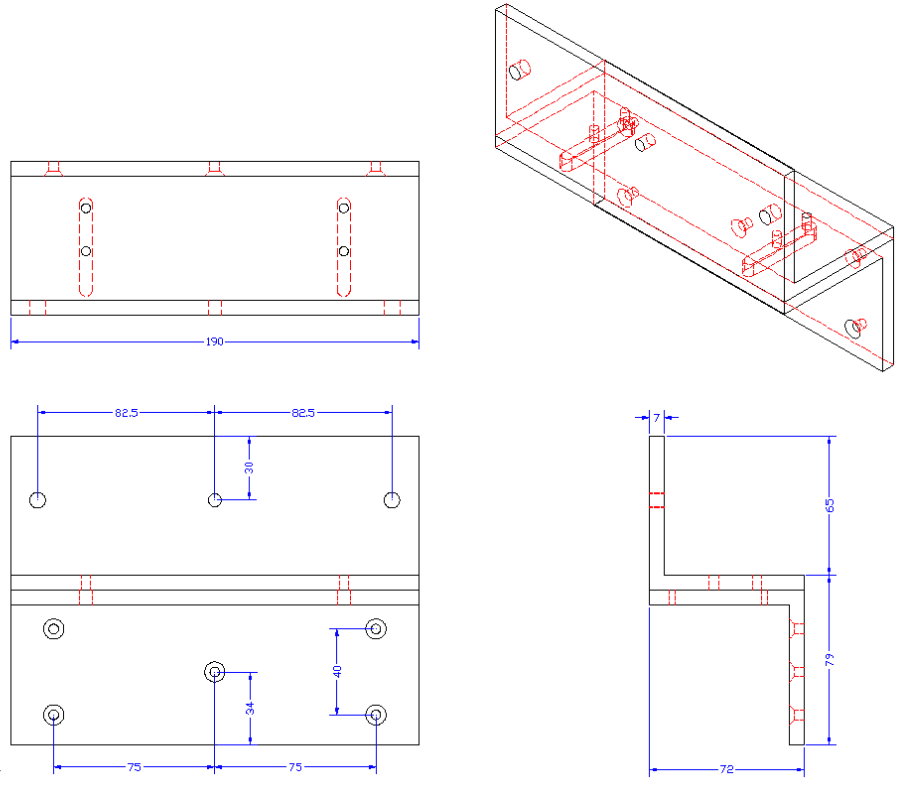

GL-600 Z-Bracket

Material: Aluminum
(Selects and purchases accroding to the service condition.)
