EM-250A / EM-251A / EM-252A

Inquiry

Product ID: EM-250A (600LBS)

  • Name type :EM-250A/EM-251A/EM-252A
  • Holding force(Max):600LBS(270KG)
  • Voltage:12VDC~24VDC
  • Current:12VDC-500mA, 24VDC-250mA
  • Body:502L×47W×25H(mm)
  • Strike plate:185L×38W×12H(mm)
  • Material:Aluminum

Assembly
PDF

Function:

  EM-250A EM-251A EM-252A
Door monitoring output YES YES NO
LED indicator YES YES NO
Dealy time NO YES NO

Accessories:

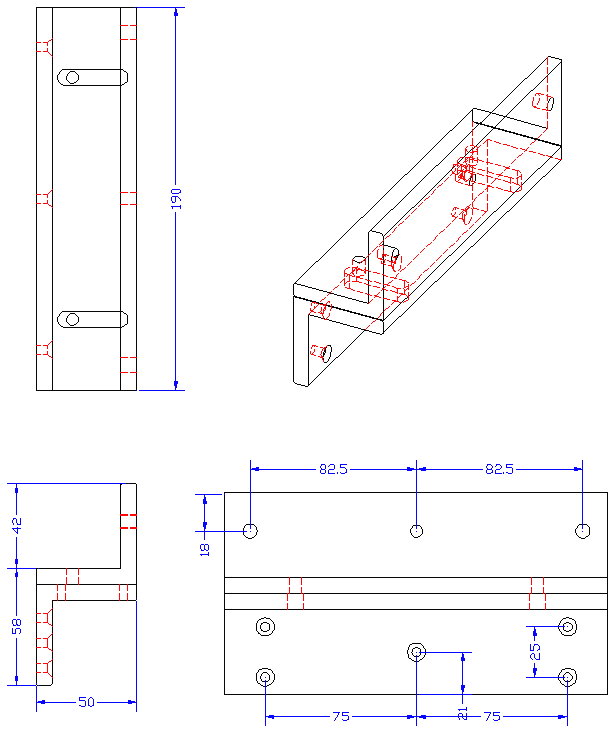

EM-250 L-Bracket

Material: Aluminum
(Selects and purchases accroding to the service condition.)

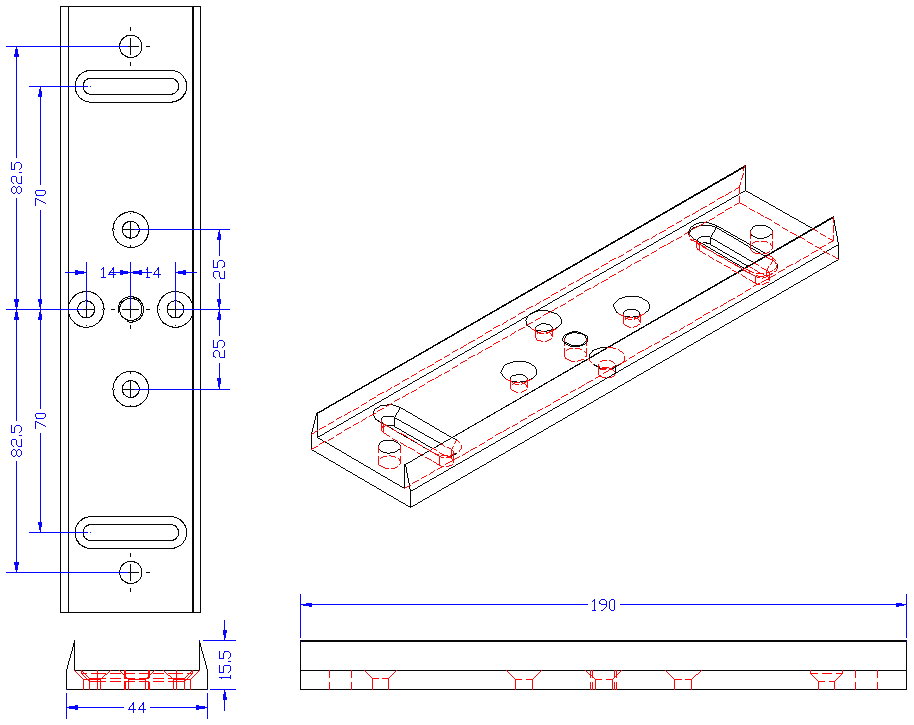

EM-250 Z-Bracket

Material: Aluminum
(Selects and purchases accroding to the service condition.)

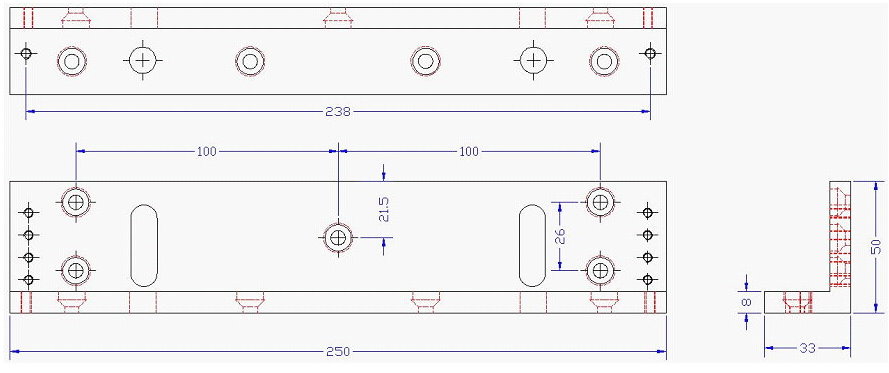

EM-250U

Material: Aluminum
(Selects and purchases accroding to the service condition.)

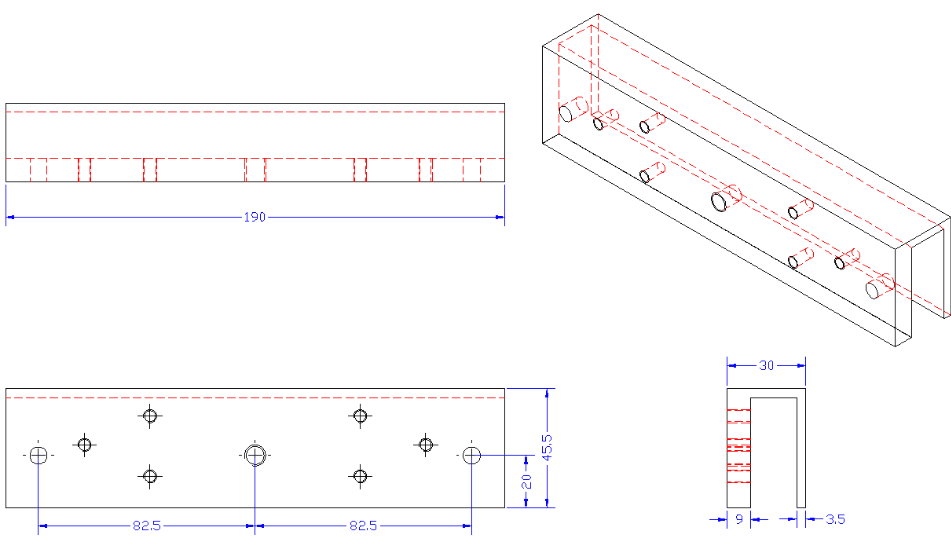

EM-250E

Material: Aluminum
(Selects and purchases accroding to the service condition.)
